Product description:
HSH - B lever hoist is my company in the original traditional products design and development of a new generation of products. The product has small volume, light weight, beautiful appearance, small lever force, safe and reliable, long life and other significant advantages, particularly suited to shipbuilding, post, mining, power, transportation and other departments in the absence of power supply situation is used as weight lifting, equipment installation, mechanical traction, etc.
Main technical parameters
| Model | HSH-B3/4 | HSH-B1/2 | HSH-B3 | HSH-B6 |
| Reted capacity |
| ton | 0.75 | 1.5 | 3 | 6 |
| Lift height |
| m | 1.5 | 1.5 | 1.5 | 1.5 |
| Tast load |
| ton | 0.9375 | 1.875 | 3.75 | 7.5 |
| Min,distance between hooks:H |
| mm | 335 | 400 | 465 | 565 |
| Pull on lever to lift full load |
| kgt | 17.5 | 21.8 | 32 | 34 |
| NO:of load chain falls |
|
| 1 | 1 | 1 | 2 |
| Standard of load chain falls |
| mm | 6x18 | 8x24 | 10x30 | 10x30 |
| Length of lever handle:D |
| mm | 280 | 410 | 410 | 410 |

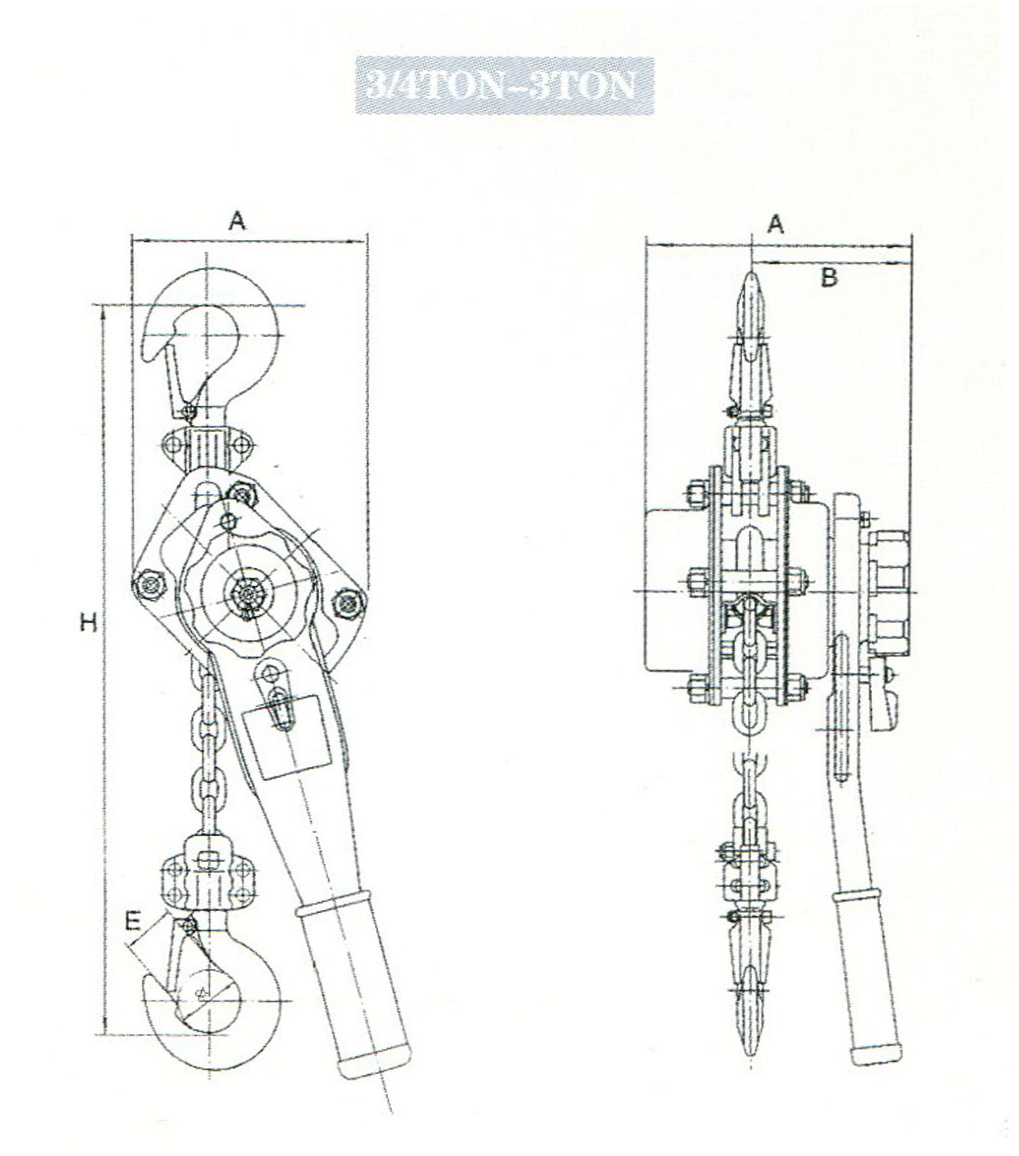

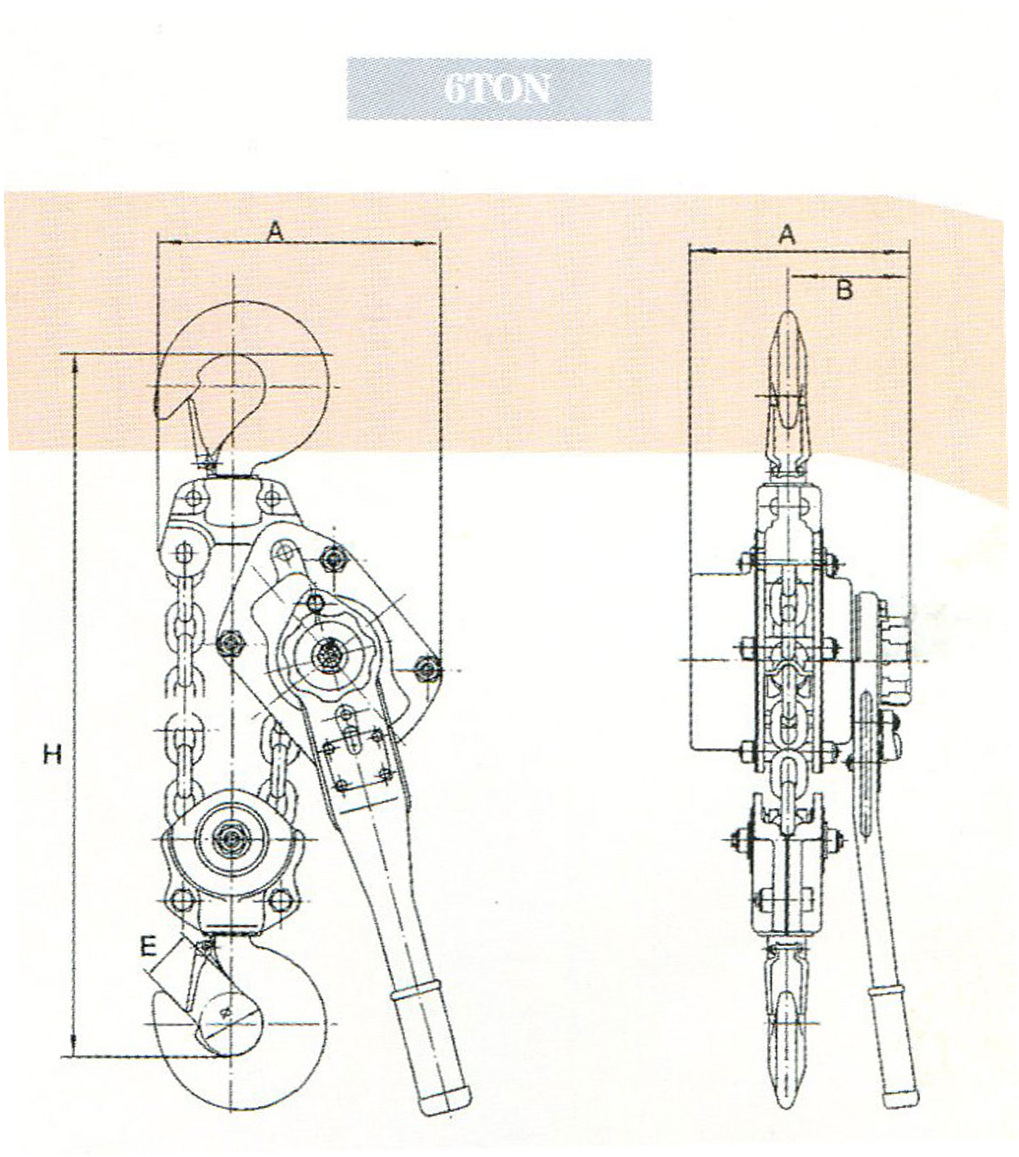

Outline size
mm | A | 156 | 176 | 202 | 202 |
B | 94 | 103 | 112 | 112 |
C | 138 | 162 | 202 | 252 |
Φ | 37 | 42 | 50 | 57 |
E | 31 | 38 | 46 | 49 |
| Pack size |
| cm | 37x17.5x12 | 52x19.5x14 | 54x22x18 | 54x22x18 |
| Net weight |
| kg | 7 | 11.5 | 19.5 | 29.5 |
Extra weight per meter of extralift |
| kg | 0.81 | 1.417 | 2.19 | 4.38 |
